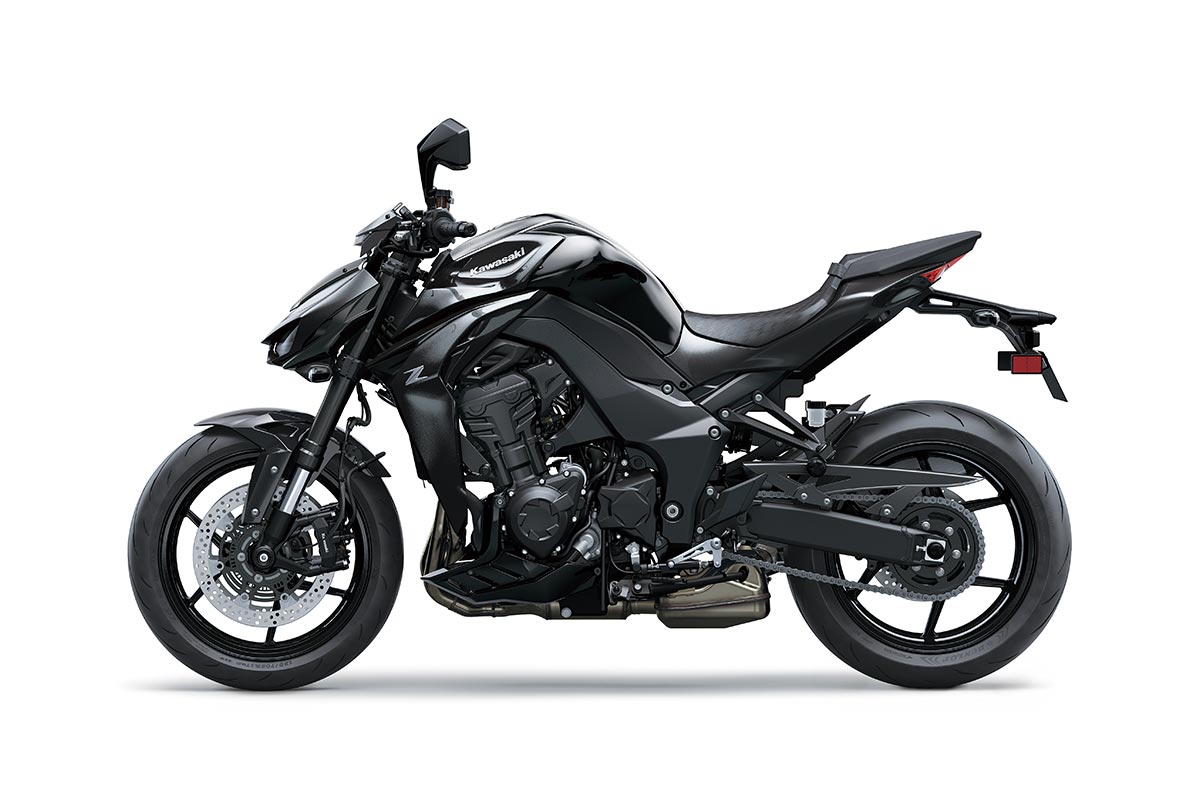

Spesifikasi Z1100 ABS & Z1100 SE ABS
POWER
Jenis Mesin
Liquid-cooled, 4-stroke In-Line Four
Sistem Pengapian
Digital
Power Maksimum
100 kW {136 PS} / 9.000 rpm
Torsi Maksimum
113 Nm {11,5 kgfm} / 7.600 rpm
Diameter x Langkah
77,0 x 59,0 mm
Kapasitas Mesin
948 cc
Sistem Katup
DOHC, 16 valves
Perbandingan Kompresi
11,8:1
Transmisi
6-speed, return
Primary Reduction Ratio
1,069 (31/29)
Final Reduction Ratio
2,800 (42/15)
PERFORMANCE
Suspensi Depan
ø41 mm inverted fork with compression and rebound damping and spring preload adjustability
Suspensi Belakang
Horizontal Back-link, gas-charged rear shock with rebound damping adjustability and spring preload adjustability
Rem Depan
Dual semi-floating ø310 mm discs
Kaliper Depan
Dual radial-mount, monobloc, opposed 4-piston
Rem Belakang
ø260 mm disc
Roda Depan
120/70ZR17M/C (58W)
Roda Belakang
190/50ZR17M/C (73W)
DETAILS
Dimensi
2.055 x 825 x 1.085 mm
Jarak poros roda
1.440 mm
Jarak ke Tanah
815 mm
Berat Kosong
221 kg
Berat Kering
201 kg
Kapasitas Bensin
17 liter
